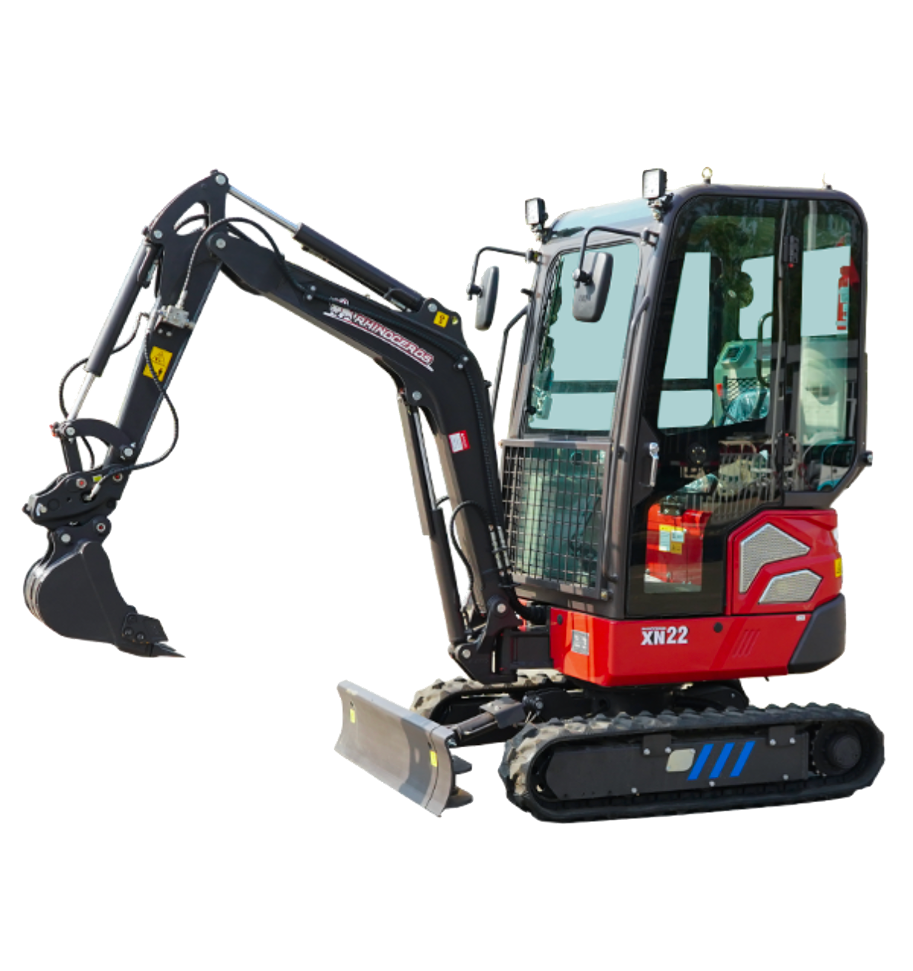

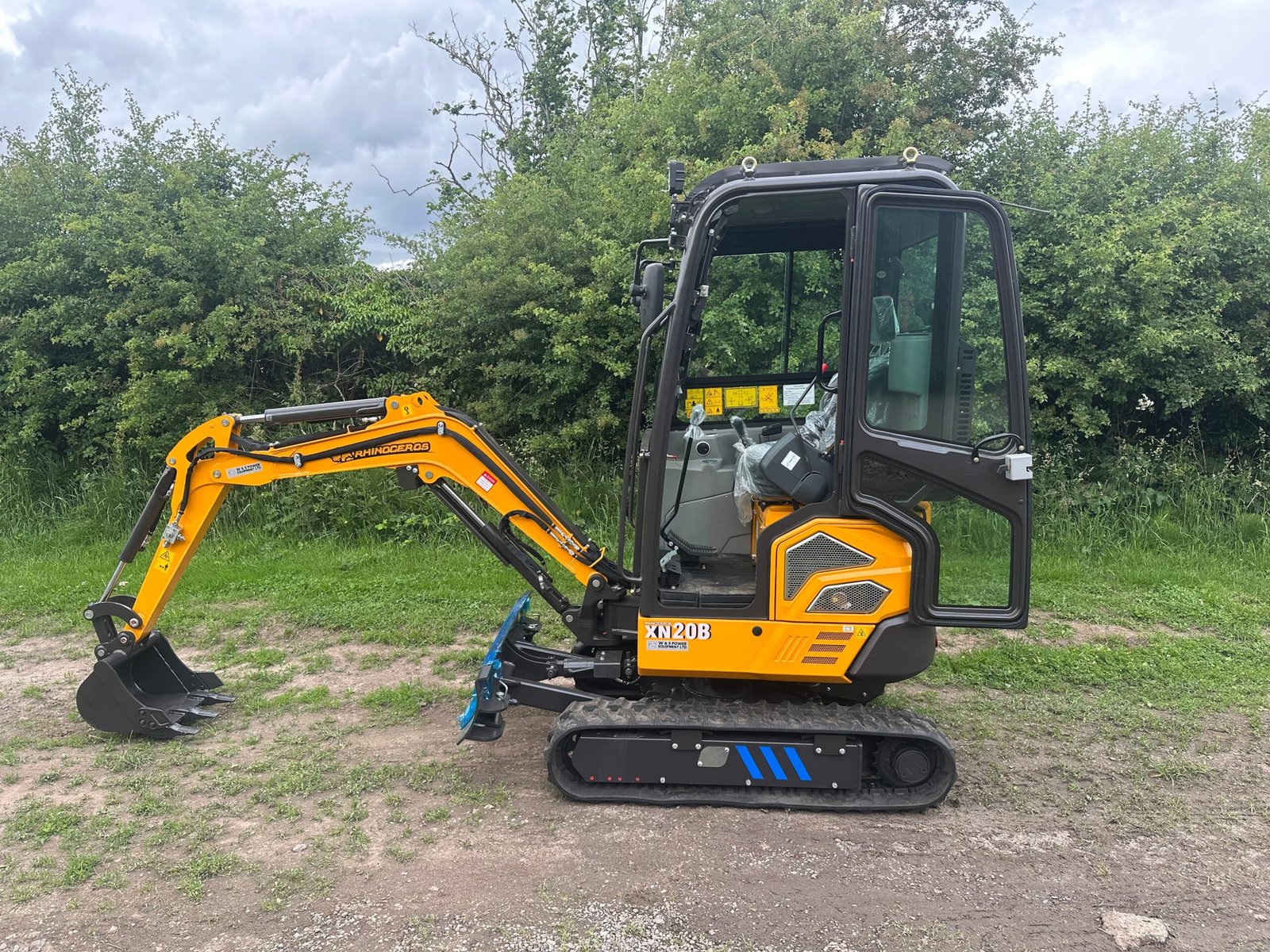

Mini Excavator XN22 (AKA20B) Includes 200/430/1000mm Bucket
£15,999.00
Our smallest model with cabin, the XN20B boasts a spacious cabin for its operator, pilot control and hydraulic joystick , making it comfortable and smooth to operate.
RHINOCEROS XN22 CRAWLER EXCAVATOR (AKA XN20B)
COMFORT AT ITS CORE
Our smallest model with cabin, the XN20B boasts a spacious cabin for its operator, pilot control and hydraulic joystick, making it comfortable and smooth to operate.
As it the case with all of Rhinoceros’ small models, its zero-tail design and compactness allows forrotation movements in tight and confined spaces.
Agile and Maneuverable
Movements With a narrow chassis width of just 1,025 mm and a transportation length of 3,475 mm, the XN22 is designed to easily navigate confined areas and job sites with limited access. Its minimum turning radius of 1,580 mm ensures precise maneuverability, allowing you to work efficiently in small spaces.
Impressive Digging Capabilities
The XN22 features a maximum digging radius of 3,700 mm and a maximum digging depth of 2,150 mm, providing efficient excavation capabilities. The maximum digging height of 3,275 mm and maximum unloading height of 2,310 mm make material handling smooth and streamlined.
Backhoe Working Device and Boom Swing
Equipped with a backhoe working device, the XN22 enhances your ability to perform versatile digging tasks. Its boom swing functionality (left: 390 mm, right: 510 mm) further increases its flexibility, making it easy to work in confined or difficult-to-reach areas.
Dependable Engine and Performance
Powered by a Kubota enginerated at 14.2 kW, the XN22 offers consistent, reliable performance across a range of tasks. Its maximum grade ability of 30° provides stability on slopes and uneven terrains.
Engine
Model number: Kubota D1105
Displacement: 1.123 L
Rated power: 14.2 KW
Max. torque: 71.4 N.m
Main Specifications
Operating weight: 2030 kg
Working device type: Backhoe
Standard bucket capacity: 0.045 m3
Main Dimensions
A. Wheel base: 1230 mm
B. Track length: 1590 mm
C. Upper chassis ground clearance: 473 mm
D. Counterweight turning radius: 885 mm
E. Chassis width: 1025 mm (1275 mm)
F. Track width: 230 mm
G. Track height: 360 mm
H. Transportation length: 3475 mm
I. Height of seat to ground: 1750 mm
J. Overall height: 2455 mm
K. Boom swing (left): 390 mm
L. Boom swing (right): 510 mm
Operational Range
A. Max. digging radius on ground: 3610 mm
B. Max. digging radius: 3700 mm
C. Max. digging depth: 2150 mm
D. Max. digging height: 3275 mm
E. Max. unloading height: 2310 mm
F. Max. vertical digging depth: 1740mm
G. Min. turning radius: 1580 mm
H. Max. lifting height dozer blade: 275 mm
I. Max. depth dozer blade: 180 mm
Speed
Max. travel speed: 3.3 km/h / 2.2 km/h
Swing speed: 10.5 rpm
Max. grade ability: 30°
Tracks
Ground specific pressure: 41.3 KPa
Material: Rubber or steel
Type of tensioner: Grease cylinder
Hydraulic System
Pump type: Piston pump
Working pressure: 22 Mpa
Flow rate: 39.6 L/min
Hydraulic oil tank capacity: 15.3 L
Fuel tank capacity: 18 L
Hydraulic oil tank capacity: 15.8 gal / 60 L
| Operating Weight | 2030 kg |
|---|
